Re: [hatari-devel] Hatari screen dialog regression

[Eero Tamminen <oak@xxxxxxxxxxxxxx>]

Hi,

On 10.8.2025 12.06, Thomas Huth wrote:
> > Thomas, could you check the patch series too?
>
> Sorry, I currently don't have the capacity to review bigger patch series.
>
> But I noticed that the screen dialog is currently still broken when you run
> Hatari without borders and without status bar (e.g. in monochrome mode when
> disabling the status bar). Dialogs must not be bigger than 80x25 characters.

Max width is 64.  I think check + error logging for the sizes are needed
as it seems that even we developers get it wrong. :-)

> @Nicolas, I think this should get fixed before the 2.6.1 release.

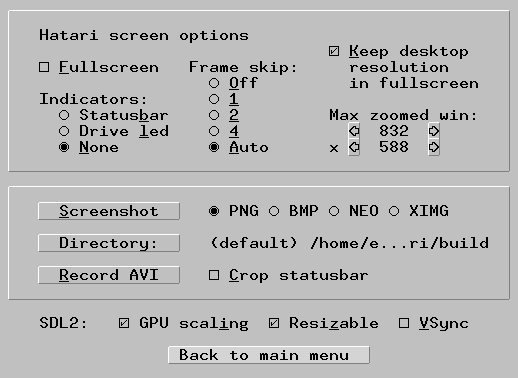

Attached are patches to fix this, and what the dialog looks with them.


	- Eero

PS. Before release, also corresponding manual update is needed for its
screen dialog section.
From 49195a744877956dd30cd0e62482106a8c9b3ffa Mon Sep 17 00:00:00 2001
From: Eero Tamminen <oak@xxxxxxxxxxxxxx>
Date: Sun, 10 Aug 2025 20:34:50 +0300
Subject: [PATCH 2/2] Log errors on invalid dialog sizes

To catch non-working changes to dialog contents.
---
 src/gui-sdl/sdlgui.c | 24 ++++++++++++++++++++++--
 1 file changed, 22 insertions(+), 2 deletions(-)

diff --git a/src/gui-sdl/sdlgui.c b/src/gui-sdl/sdlgui.c
index 107bcf10..d5238dac 100644
--- a/src/gui-sdl/sdlgui.c
+++ b/src/gui-sdl/sdlgui.c
@@ -30,6 +30,15 @@ const char SDLGui_fileid[] = "Hatari sdlgui.c";
 # define Dprintf(a)
 #endif

+/* sanity check for minimum size */
+#define MIN_DIALOG_WIDTH  12
+#define MIN_DIALOG_HEIGHT  5
+/* Dialogs need to fit into Hatari window.  These are max sizes
+ * (with the current font) when both borders & statusbar are disabled.
+ */
+#define MAX_DIALOG_WIDTH  64
+#define MAX_DIALOG_HEIGHT 25
+
 static SDL_Surface *pSdlGuiScrn;            /* Pointer to the actual main SDL screen surface */
 static SDL_Surface *pSmallFontGfx = NULL;   /* The small font graphics */
 static SDL_Surface *pBigFontGfx = NULL;     /* The big font graphics */
@@ -215,8 +224,19 @@ void SDLGui_GetFontSize(int *width, int *height)
  */
 void SDLGui_CenterDlg(SGOBJ *dlg)
 {
-	dlg[0].x = (pSdlGuiScrn->w/sdlgui_fontwidth-dlg[0].w)/2;
-	dlg[0].y = (pSdlGuiScrn->h/sdlgui_fontheight-dlg[0].h)/2;
+	int w = dlg[0].w, h = dlg[0].h;
+	/* catch invalid changes to SDL GUI dialogs */
+	if (w < MIN_DIALOG_WIDTH || h < MIN_DIALOG_HEIGHT)
+	{
+		Log_Printf(LOG_ERROR, "invalid (too small) dialog size (%dx%d)!", w, h);
+	}
+	if (w > MAX_DIALOG_WIDTH || h > MAX_DIALOG_HEIGHT)
+	{
+		Log_Printf(LOG_ERROR, "dialog too large (%dx%d), max working size is %dx%d!",
+			w, h, MAX_DIALOG_WIDTH, MAX_DIALOG_HEIGHT);
+	}
+	dlg[0].x = (pSdlGuiScrn->w / sdlgui_fontwidth - w) / 2;
+	dlg[0].y = (pSdlGuiScrn->h / sdlgui_fontheight - h) / 2;
 }

 /*-----------------------------------------------------------------------*/
--
2.39.5

From f093ffa9db588b52f776f1a00803821bcd20dc3f Mon Sep 17 00:00:00 2001
From: Eero Tamminen <oak@xxxxxxxxxxxxxx>
Date: Sun, 10 Aug 2025 20:11:23 +0300
Subject: [PATCH 1/2] Fix: fit Hatari screen dialog to smallest required size

Dialogs need to fit into Hatari window also when _both_
borders & statusbar are disabled.

Fixes: c0253f16eb177
---
 src/gui-sdl/dlgScreen.c | 21 ++++++++++-----------
 1 file changed, 10 insertions(+), 11 deletions(-)

diff --git a/src/gui-sdl/dlgScreen.c b/src/gui-sdl/dlgScreen.c
index efc52668..08113a8f 100644
--- a/src/gui-sdl/dlgScreen.c
+++ b/src/gui-sdl/dlgScreen.c
@@ -111,10 +111,10 @@ static SGOBJ monitordlg[] =
 #define DLGSCRN_CAPTURE_DIR 32
 #define DLGSCRN_RECANIM     34
 #define DLGSCRN_CROP        35
-#define DLGSCRN_GPUSCALE    38
-#define DLGSCRN_RESIZABLE   39
-#define DLGSCRN_VSYNC       40
-#define DLGSCRN_EXIT_WINDOW 41
+#define DLGSCRN_GPUSCALE    37
+#define DLGSCRN_RESIZABLE   38
+#define DLGSCRN_VSYNC       39
+#define DLGSCRN_EXIT_WINDOW 40

 /* needs to match Frame skip values in windowdlg[]! */
 static const int skip_frames[] = { 0, 1, 2, 4, AUTO_FRAMESKIP_LIMIT };
@@ -130,7 +130,7 @@ static char sScreenShotDir[29];
 /* The window dialog: */
 static SGOBJ windowdlg[] =
 {
-	{ SGBOX, 0, 0, 0,0, 52,27, NULL },
+	{ SGBOX, 0, 0, 0,0, 52,24, NULL },
 	{ SGBOX,      0, 0,  1,1, 50,10, NULL },
 	{ SGTEXT,     0, 0,  4,2, 20,1, "Hatari screen options" },
 	{ SGCHECKBOX, 0, 0,  4,4, 12,1, "_Fullscreen" },
@@ -168,13 +168,12 @@ static SGOBJ windowdlg[] =
 	{ SGBUTTON,   0, 0,  4,17, 14,1, NULL },      /* Record text set later */
 	{ SGCHECKBOX, 0, 0, 21,17, 16,1, "_Crop statusbar" },

-	{ SGBOX,      0, 0,  1,20, 50,4, NULL },
-	{ SGTEXT,     0, 0, 20,20, 12,1, "SDL2 options" },
-	{ SGCHECKBOX, 0, 0,  8,22, 20,1, "GPU scal_ing" },
-	{ SGCHECKBOX, 0, 0, 23,22, 20,1, "Resi_zable" },
-	{ SGCHECKBOX, 0, 0, 36,22, 11,1, "_VSync" },
-	{ SGBUTTON, SG_DEFAULT, 0, 17,25, 20,1, "Back to main menu" },
+	{ SGTEXT,     0, 0,  4,20, 12,1, "SDL2:" },
+	{ SGCHECKBOX, 0, 0, 12,20, 20,1, "GPU scal_ing" },
+	{ SGCHECKBOX, 0, 0, 27,20, 20,1, "Resi_zable" },
+	{ SGCHECKBOX, 0, 0, 40,20, 11,1, "_VSync" },

+	{ SGBUTTON, SG_DEFAULT, 0, 17,22, 20,1, "Back to main menu" },
 	{ SGSTOP, 0, 0, 0,0, 0,0, NULL }
 };

--
2.39.5

Attachment: window-dialog.png
Description: PNG image
